型式

Type:

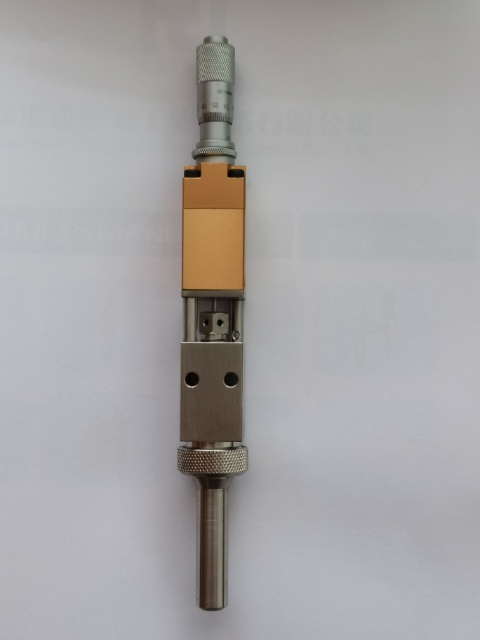

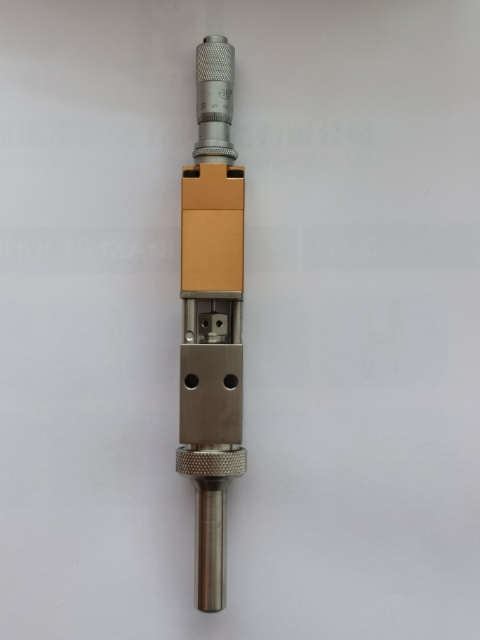

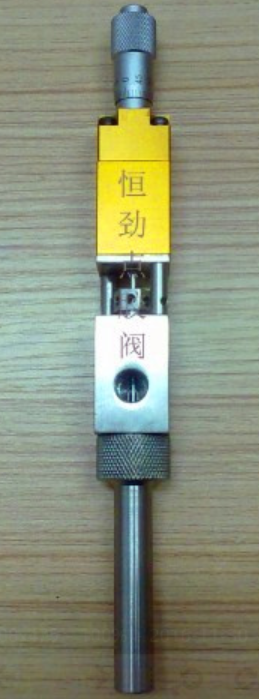

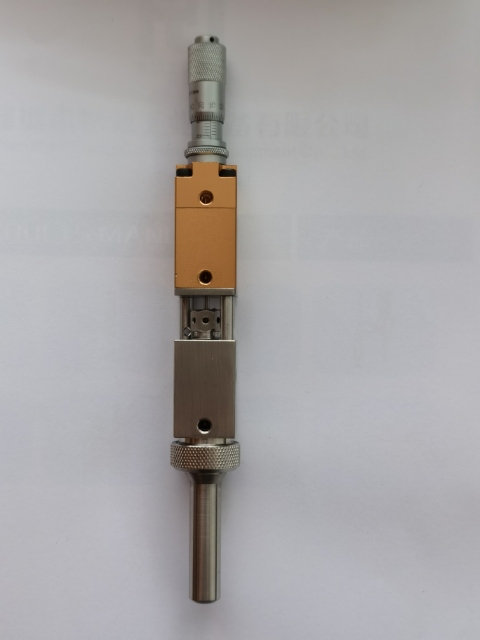

精密扇形三防漆噴霧閥

使用氣源

Operating Air Source:

4-7Kgf/cm

最小吐出量

Min.Shot Volume:

0.01ml

操作黏度

Operation Viscosities:

1-1.000.000cps

主體材質

Wet Body Material:

不銹鋼

入料壓力

Material Input Pressure:

<300 kg

入料口尺寸

Material Inlet Outlet Size:

1/8″npt(f)

操作速率

Operating Cycle:

<400/min

外形尺寸

Overall Dimensions(mm):

21*21*160 (mm)

安裝尺寸

Mounting dimensions:

M4*13 (mm)

※霧化壓力短暫保持，確保噴嘴清理，防止堵塞，保證流體的均勻霧化

※適用于三防漆等中，低粘度流體大幅噴涂（15mm-80mm)（5000cps以下粘度適用）
